Jupiter Era 8B
Remotus by Åkerströms
Built for Heavy-Duty Control
Light lifts to heavy lifts

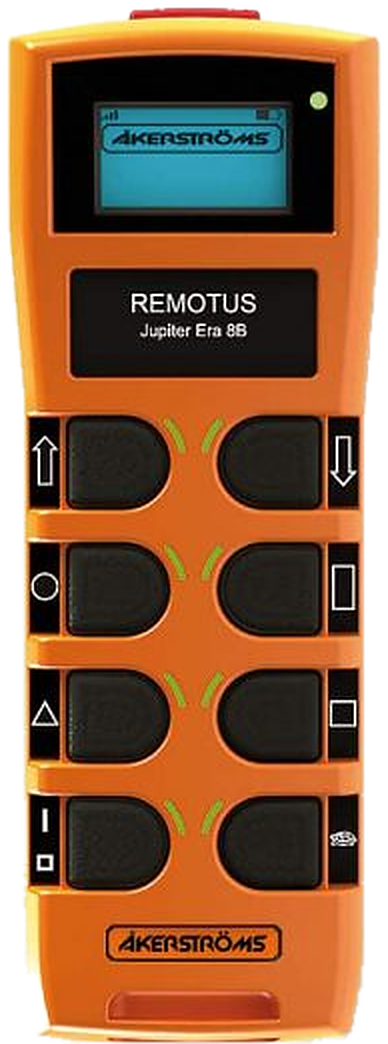

The Remotus Jupiter Era 8B is a robust, agile transmitter for light lifts, heavy lifts and other industrial or mobile applications. Eight two-stage push buttons give up to sixteen functions, backed by a graphical display and LED status indicators, in a sealed housing that keeps working through dust, rain and wash-down.
- Eight two-stage push buttons – up to 16 functions from one handset
- Graphical LCD (128×64px) showing up to four numerical or bar-graph values at once
- LED indicator on every button, plus a battery-status LED
- Adaptive transmit power (1–10 mW) to minimise radio interference
- Sealed to IP67 – dust-tight and washdown-proof
- Just 265 g including battery – built to be run all day, gloves on

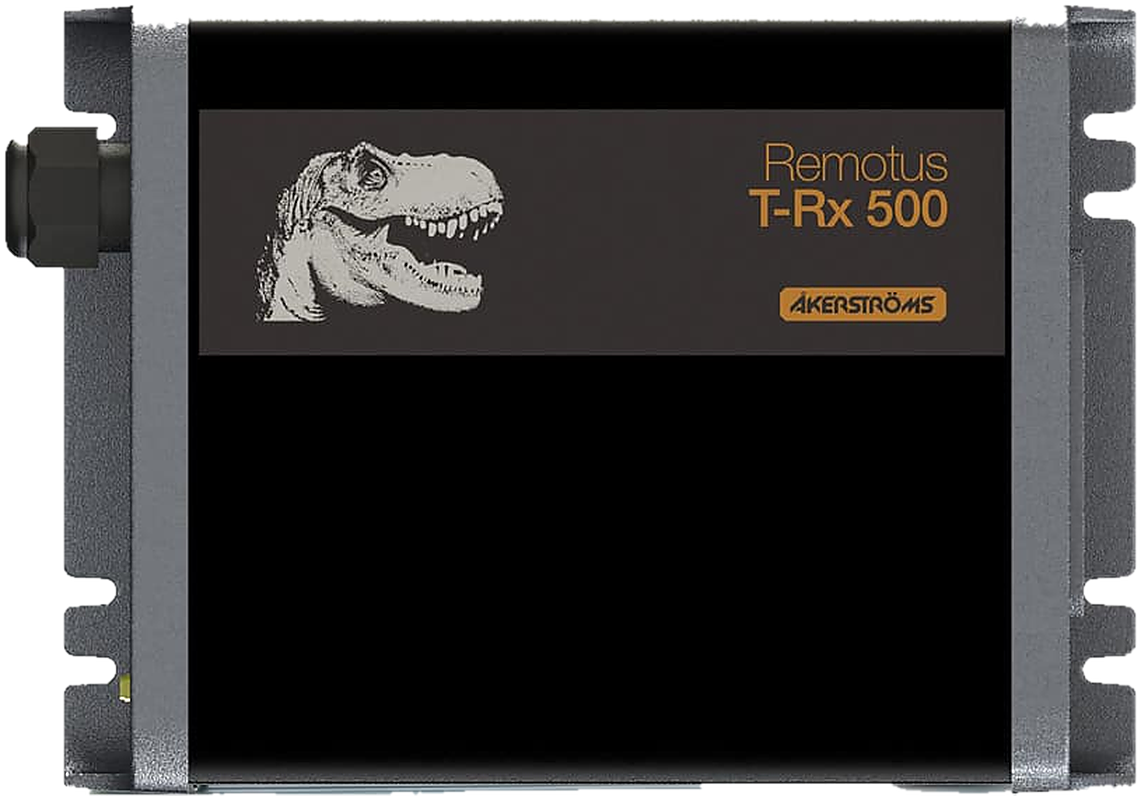

Matching Receiver – Remotus T-Rx 500
Built for the same hard use
The T-Rx 500 receiver pairs with the Jupiter Era 8B in a shock-resistant, waterproof aluminium housing rated to IP67. Up to 24 digital outputs (3A each) plus two dual safety outputs (RCSS) cover everything from a simple winch to a fully interlocked crane, with dual microprocessors cross-checking every command and running diagnostics continuously while in service.
Specifications
| Functions | Eight two-stage push buttons (16 functions) |
|---|---|
| Radio | FM GMSK, 433–434 MHz |
| Output power | 1–10 mW, adaptive |
| Antenna | Internal |
| Display | Graphical LCD, 128×64px |
| Battery | 3.7V / 1.9Ah lithium – approx. 40 hours use |
| Operating temperature | −25°C to +55°C |
| Ingress protection | IP67 |
| Dimensions | 183 × 67 × 45 mm |
| Weight | 265 g incl. battery |
Specifications sourced from Åkerströms’ own product literature – please confirm against the current datasheet before publishing or quoting.
Certified to Stop Safely
The emergency-stop function on the Jupiter series is certified to Performance Level d, Category 3 under EN ISO 13849-1.
T-Rx 500 Specifications
| Outputs | Up to 24 digital outputs (3A each), plus 2× dual safety outputs (RCSS, 3A each) |
|---|---|
| Radio | 433–434 MHz and 406–470 MHz |
| Connectors | External SMA antenna; screw terminals for outputs & power |
| Power supply | 12/24V DC, negative ground |
| Power consumption | ~1.2W |
| Operating temperature | −25°C to +70°C |
| Casing | Grey/black aluminium |
| Ingress protection | IP67 |
| Dimensions | 218 × 174 × 64 mm |
| Weight | 1.6 kg |
| Certification | EN ISO 13849-1, Category 3, PL d |
Specifications sourced from Åkerströms’ own product literature – please confirm against the current datasheet before publishing or quoting.
Applications
Cranes and lifting equipment, pumps, and other demanding industrial or mobile control tasks. Talk to us about matching a Jupiter Era system to your equipment.
